Every food chain looks simple on paper: grass, then grasshopper, then frog, then snake. What that chain hides is how much energy actually makes it from one link to the next, and the answer is: not much. Ecological pyramids exist to make that loss visible.
A graphic depiction of the interactions between various creatures in an ecosystem is called an ecological pyramid. The Eltonian Pyramids, named after Charles Elton, are another name for them. The trophic levels represented by each of the horizontal bars that make up the pyramid are different, and their arrangement which is determined by who eats whom represents the flow of energy.
Energy Flow in An Ecosystem is governed by the following laws:
Two laws of physics do all the real work here, and they’re worth understanding before touching the pyramids themselves.
Energy cannot be generated or destroyed, according to the First Law of Thermodynamics, but it can be changed from one form to another.
The Second Law of Thermodynamics asserts that the amount of available energy rapidly decreases with each subsequent energy transfer in a system.

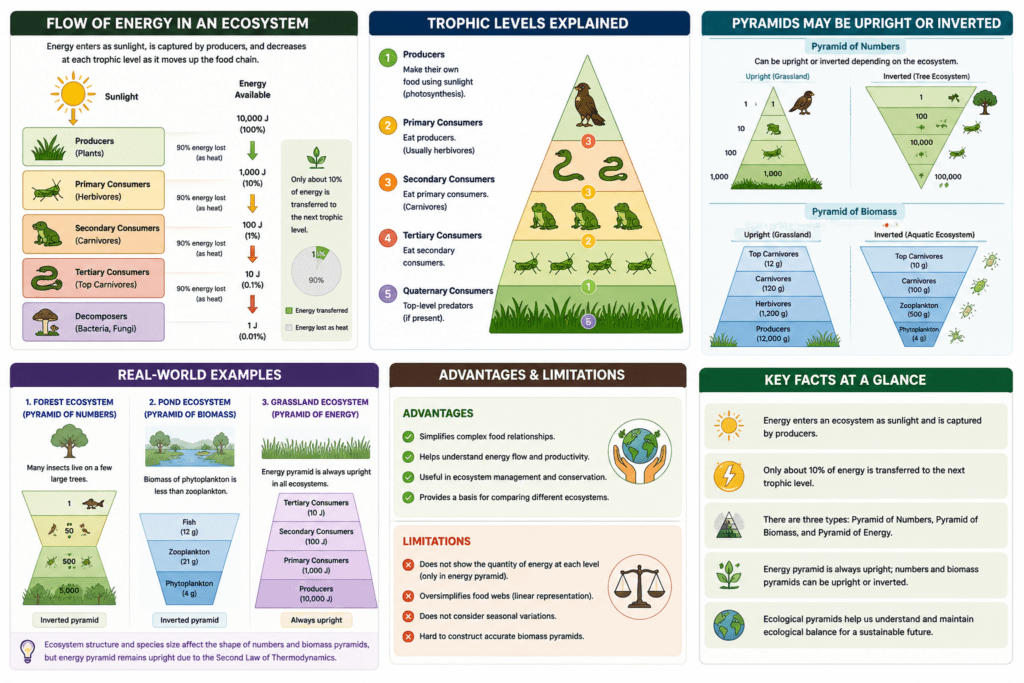

In practice, this plays out as what ecologists call the ten percent rule: roughly 10% of the energy consumed at one trophic level ends up stored in the tissue of the organisms at the next level up. The rest is burned off through respiration, movement, and metabolic waste. A plant might capture a small fraction of the sunlight hitting it; a deer eating that plant retains only a fraction of the plant’s stored energy; a wolf eating the deer keeps less still. This stepwise loss is why food chains rarely run longer than four or five links there simply isn’t enough energy left by the fifth transfer to support anything.
This same energy math was formalized by the ecologist Raymond Lindeman in a landmark 1942 paper on the trophic-dynamic structure of ecosystems, which is the theoretical backbone behind the modern pyramid of energy.
As an example, during the movement of food energy throughout an ecosystem, a significant portion is lost as heat as a result of metabolic processes. Only a limited portion is stored in biomass or living tissues.
Three types of ecological pyramids exist in nature-
1) Numbers
2) Biomass
3) Energy
Of which all are upright without any exceptions as energy flow in all the ecosystems follows the 10% law of energy at each stage.
The Three Pyramids and Where They Break
Ecologists generally recognize three types of ecological pyramids: numbers, biomass, and energy. A common misconception repeated in a lot of textbook summaries is that all three are always upright. They aren’t. Only one of them is guaranteed to be.
| Pyramid type | What it measures | Usually upright? | Known exceptions |
|---|---|---|---|
| Numbers | Population count per trophic level | Mostly | Detritus food chains (many decomposers feeding on one dead organism); parasite chains |
| Biomass | Total mass of organisms per trophic level | Mostly, on land | Inverted in most aquatic systems, where a small mass of fast-reproducing phytoplankton supports a much larger mass of zooplankton |
| Energy | Energy flow per trophic level | Always | None, energy transfer is one-directional and irreversible |
Pyramid of Numbers
The population density at each trophic level is represented by the pyramid of numbers. Let’s say that each day, an ecosystem obtains 1000 calories of light energy. Only 100 of the 1000 calories are retained as energy-rich materials since the majority of the energy is not absorbed, some of it is reflected in space, only a small portion is used by green plants, and of those, the plant uses up some for respiration. Now imagine that a deer or another animal consumes the plant that has 100 calories of dietary energy. A portion of it is used by the deer for metabolism, and just 10 calories are stored as food energy. Even less energy is gained by a lion that consumes the deer. Thus, from sunlight to producer to herbivore to carnivore, useful energy diminishes. The energy pyramid will always be upright as a result.
The number pyramid is typically upright, with the exception of some circumstances like the detritus food chain, in which numerous species consume a single dead plant or animal. The concept goes back to the British ecologist Charles Elton, who described the “pyramid of numbers” in his 1927 book Animal Ecology, which is why these diagrams are sometimes still called Eltonian pyramids. Each horizontal bar in the pyramid represents a trophic level, producers, herbivores, carnivores, and so on, stacked according to who eats whom. The shape of the stack tells you something real about how energy, biomass, or population is distributed through an ecosystem.
Because of food waste during eating, digestion, and finally, the utilization of food for respiration and physical activity, the population of people living in higher tropics typically continues to decline.
The pyramid of numbers has certain limits, though, since it doesn’t account for the precise population. As a result, it is unable to fully describe the trophic structure of a system, overlooks species biomass, and obscures the flow of energy between individuals. Number pyramids are not particularly useful since they do not provide a clear or accurate representation of the food chain.
Pyramid of Biomass
Indicating the total mass of organisms at a certain trophic level, biomass is the amount of living material per unit area present in an individual or a group of individuals at a given trophic level. Each level of this specific ecological pyramid considers the amount of biomass that each trophic level produces. With the exception of what is seen in oceans, where numerous zooplanktons depend on a relatively small number of phytoplanktons, the biomass pyramid is also vertical.
The pyramid typically starts out larger at the base and gets smaller as it rises. A rise in trophic levels invariably results in a decrease in biomass. Approximately 10 and 20 percent of the biomass is transferred from one trophic level to another.
Inverted and upright pyramids are the two forms of biomass pyramids. One is the aquatic ecology, where microscopic phytoplanktons with a very high number but very little biomass serve as producers.
The terrestrial environment is represented by the upright pyramid. The smallest trophic levels are found at the top, and it has a broad base made up primarily of primary eaters.
The advantage of this pyramid is that it shows the amount of energy at each trophic level precisely. When there is a drop in biomass and a rise in trophic levels, it shows waste and consumption of biomass at every transfer level. This pyramid has the advantage of accurately depicting the quantity of energy present at each trophic level. It indicates waste and consumption of biomass at every transfer level when there is a decrease in biomass and an increase in trophic levels. However, there are certain constraints that surround this pyramid as well, such as the fact that it is actually difficult to quantify the mass of every single person. Since only a sample is taken, mistakes might occur, and various species have distinct breeding seasons.
Pyramid of Energy
The transfer of energy from producers to consumers is depicted by the upright pyramid known as the “pyramid of energy.” It reveals the actual part different species actually play in the flow of energy. Energy pyramids show how much energy is needed as it moves up the trophic levels. Since energy transmission in a food chain is always unidirectional, the pyramid of energy is the only sort of ecological pyramid that is always upright. Also, some energy is lost to the environment at each higher trophic level. This energy pyramid is based on Lindemann’s idea of the movement of energy in a food chain.
The energy is highest at the producer level and gradually decreases as it moves to the subsequent levels, including herbivores (primary consumers), carnivores (secondary, tertiary consumers)
How Ecological Pyramids Help in understanding the Environment
In addition to displaying the eating habits of creatures in various environments, an ecological pyramid can also demonstrate the inefficiency of energy transfer and the effects that changes in the population of one trophic level might have on the trophic levels above and below it.
Second, it is beneficial to see how the organisms are affected by environmental changes.
Additionally, it aids the government in taking the required actions to protect ecosystems from harm and perhaps even undo some of the current harm.
Frequently Asked Questions
What is an ecological pyramid?
An ecological pyramid is a graphical representation of the distribution of organisms, biomass, or energy across different trophic levels in an ecosystem. It helps explain how energy and matter flow from producers to top consumers.
What is the 10% rule in ecology?
It’s the observation that, on average, only about 10% of the energy consumed at one trophic level is stored as biomass available to the next level up. The rest is lost as heat through metabolism.
Can a pyramid of numbers be inverted?
Yes. Detritus food chains, where many decomposers feed on one dead organism, and parasitic chains, where many parasites depend on one host, commonly produce an inverted pyramid of numbers.
Why does the ocean have an inverted biomass pyramid?
Because phytoplankton, the base of the marine food chain, turn over so fast that their standing biomass at any single moment is smaller than the zooplankton biomass feeding on them, even though their total energy production over time is far greater.
Why is the pyramid of energy always upright?
Energy flow through an ecosystem is unidirectional and governed by the Second Law of Thermodynamics. Each trophic level always retains less usable energy than the level beneath it, with no known exceptions.
What is the importance of ecological pyramids?
Ecological pyramids help scientists and students understand ecosystem structure, energy flow, species relationships, and environmental balance. They are widely used in ecology, conservation biology, and environmental management.
